MeshCore Repeaters

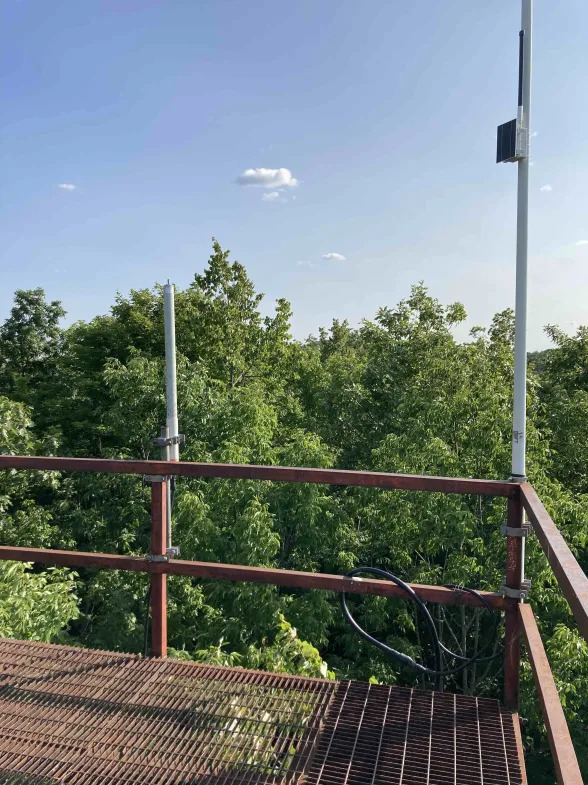

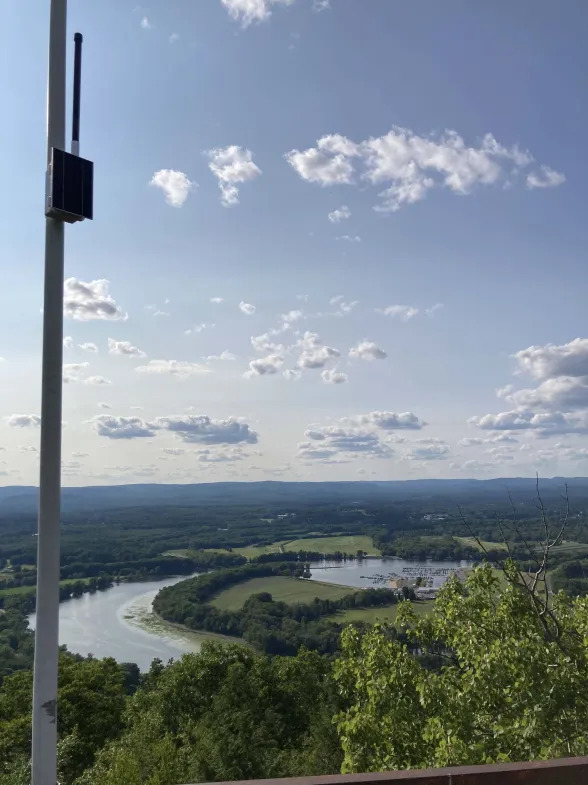

Northampton MA [2D5F]
| Owner: | Consume House |
| Power: | Solar, unknown battery |
| Antenna: | 5db omni |
| Last Seen: | Loading... |
| Location: | 42.2805,-72.6199 |
| 0 Hop Neighbors: | Loading... |
| Installed at Mt Nonotuck overlooking Northampton, MA. Fantastic coverage up and down the CT river valley | |
South Hadley [6E90]
| Owner: | Consume House |
| Power: | Solar, unknown battery |
| Antenna: | 5db omni |
| Last Seen: | Loading... |
| Location: | 42.2778,-72.5941 |
| 0 Hop Neighbors: | Loading... |
| Installed near Mt Holyoke overlooking South Hadley, MA | |

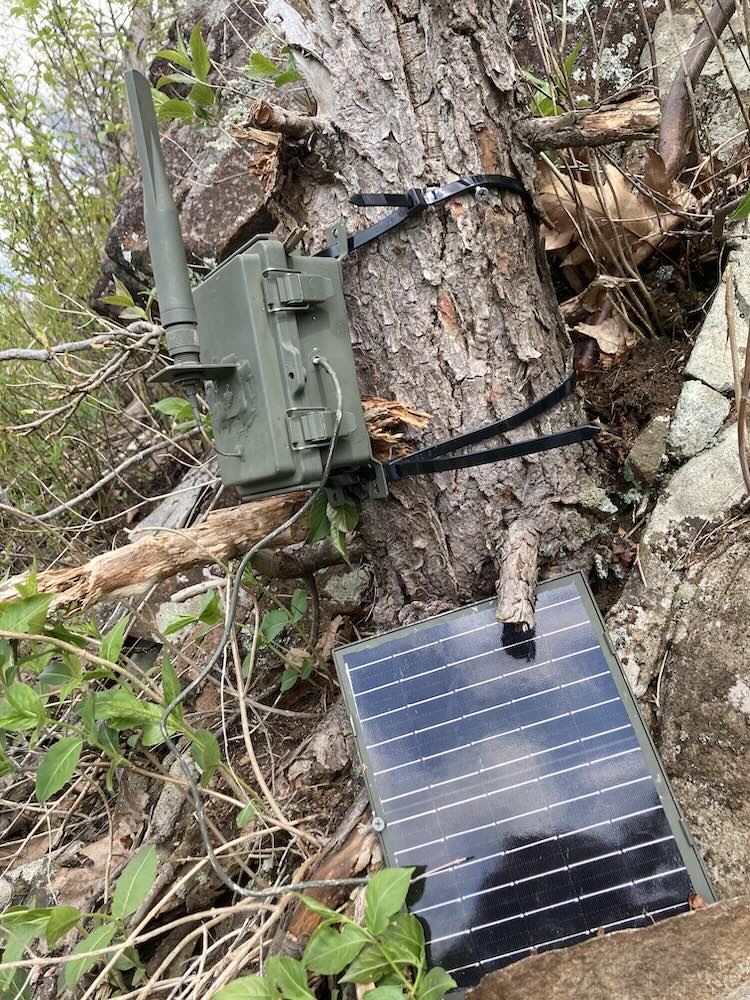

Oxbow [0CF0]
| Owner: | Consume House |
| Power: | Solar, unknown battery |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.2908,-71.6308 |
| 0 Hop Neighbors: | Loading... |
| Installed on a slope overlooking the Connecticut River Oxbow. Provides excellent coverage for Northampton. | |
Repeat After Me [5F0F]
| Owner: | Consume House |
| Power: | Solar, unknown battery |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.2491,-72.6453 |
| 0 Hop Neighbors: | Loading... |
| Installed near the old windmill near the old Mt Tom ski area. | |
Leeds, MA [1B75]
| Owner: | pvmesh |
| Power: | Commercial power, generator backup |
| Antenna: | 5db omni |
| Last Seen: | Loading... |
| Location: | 42.3586,-72.7243 |
| 0 Hop Neighbors: | Loading... |
| Raspberry Pi4 with FrequencyLabs MeshAdv Hat running openHop repeater software and meshcore-bot. Doesn’t provide great coverage but has solid connections to many of the area repeaters for wmass bot and as an observer for pvmesh maps and New England mesh analyzer. | |

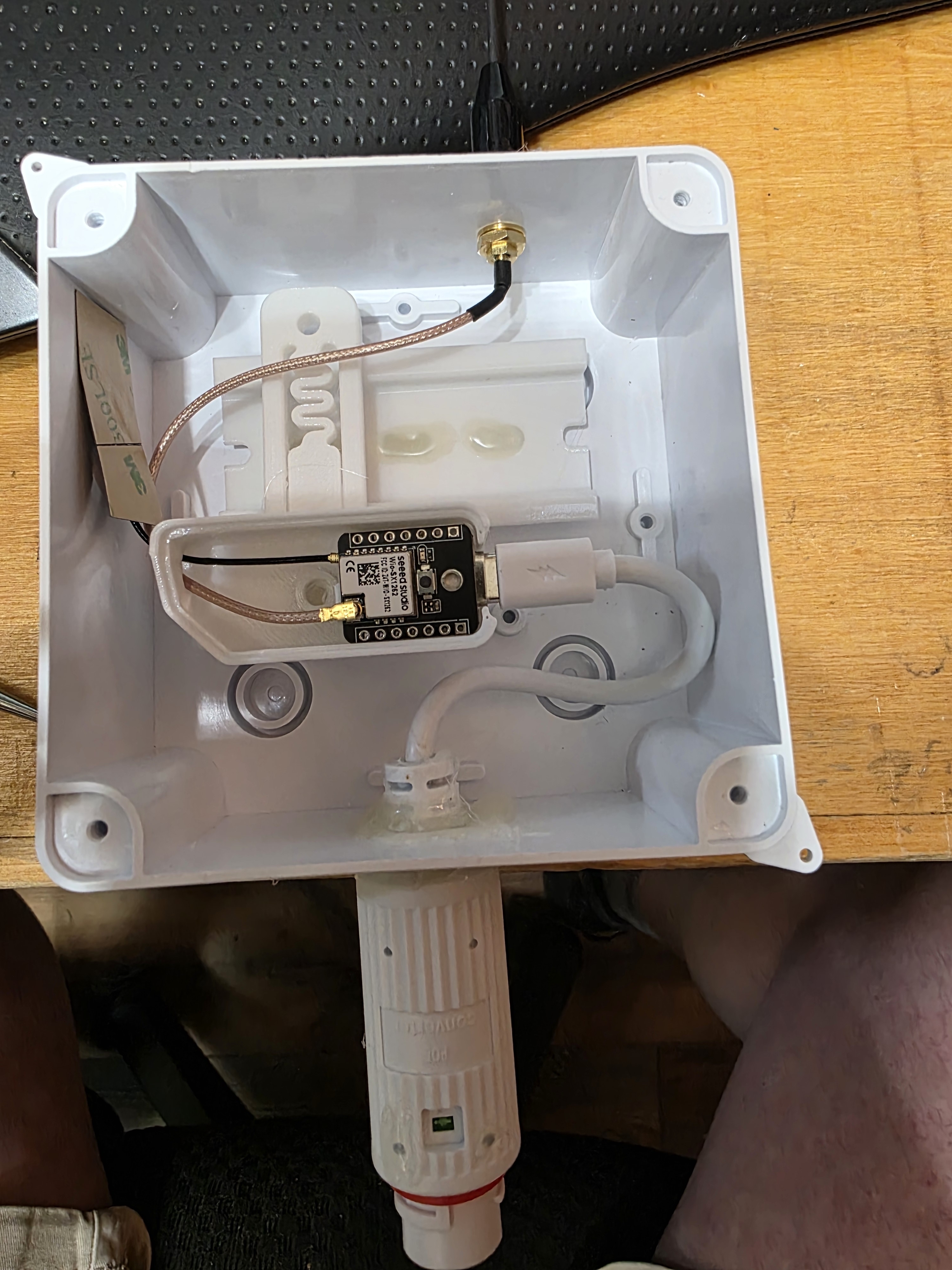

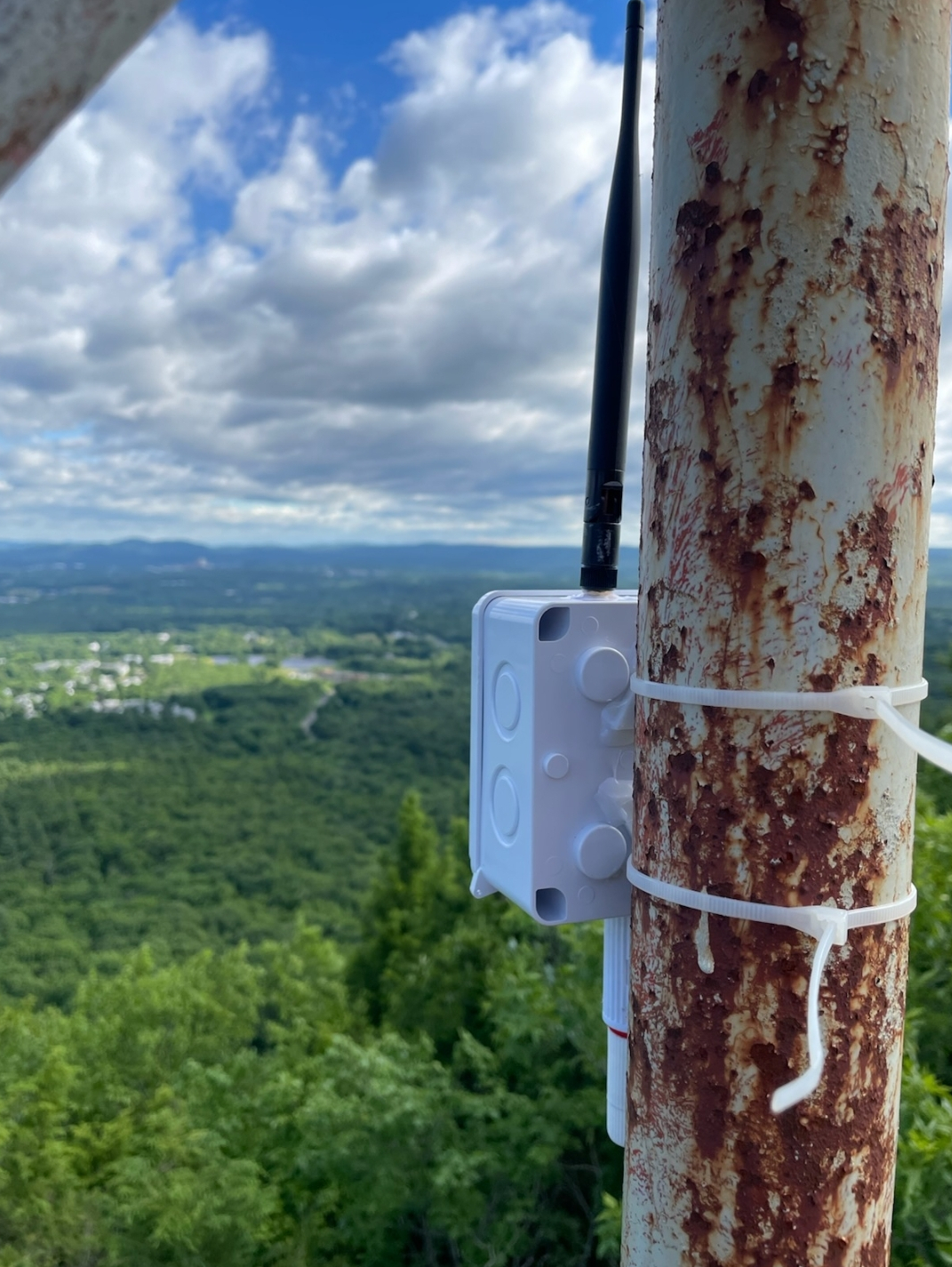

Bare_mountain_PoE [25C4]
| Owner: | Kevin Hannon |
| Power: | Commercial power |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.3032,-72.5316 |
| 0 Hop Neighbors: | Loading... |
| Great coverage for Amherst and Hadley. Located on the Bare Mountain radio tower. | |

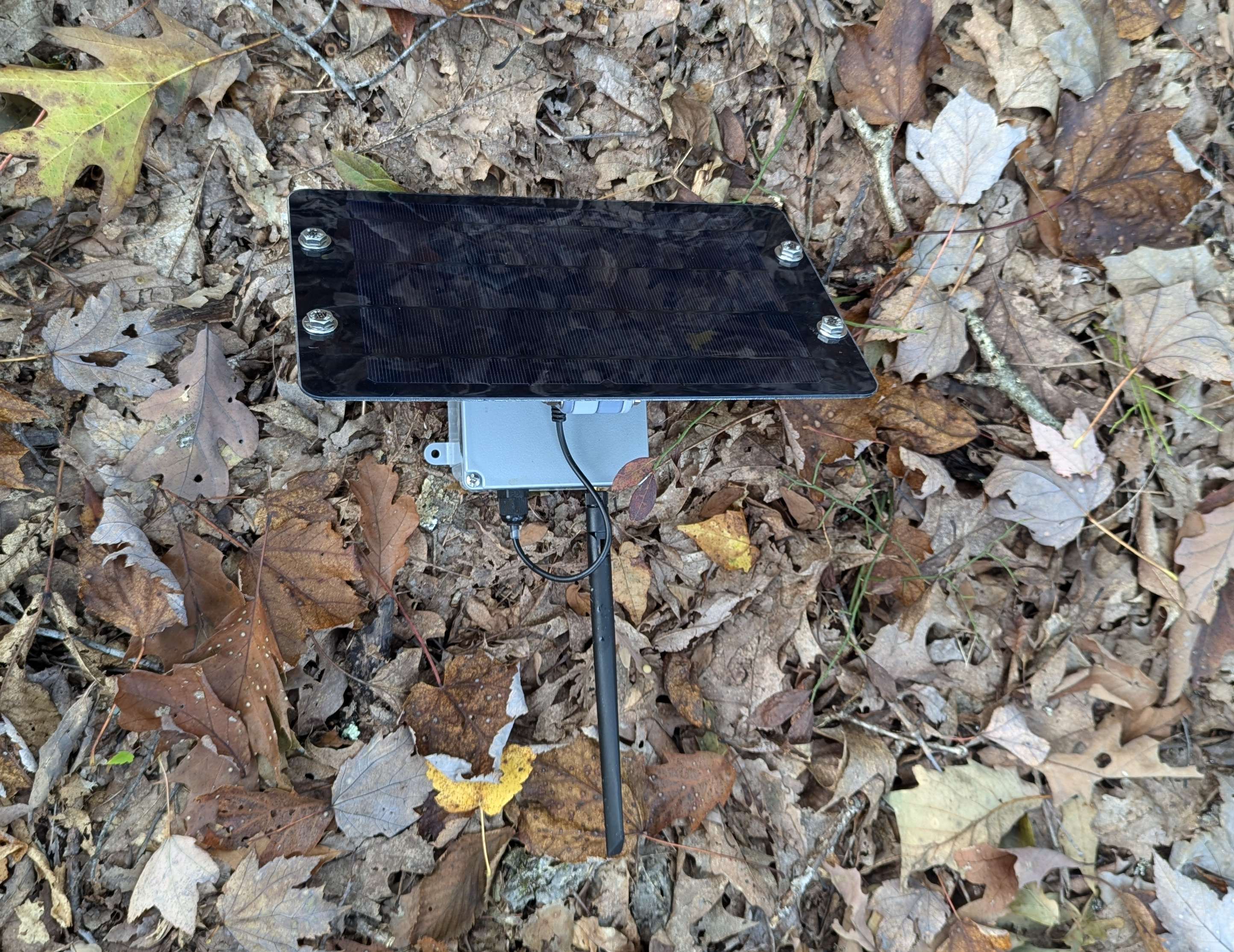

Turkey Hill [9669]
| Owner: | pvmesh |
| Power: | Solar, 3000mA battery |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.3150,-72.7365 |
| 0 Hop Neighbors: | Loading... |
| Tree mounted. Provides coverage for parts of Florence, Easthampton and Hatfield. RAK 4631 module, INA219 sensor, 6W Soshine solar, 3000mAh battery. | |

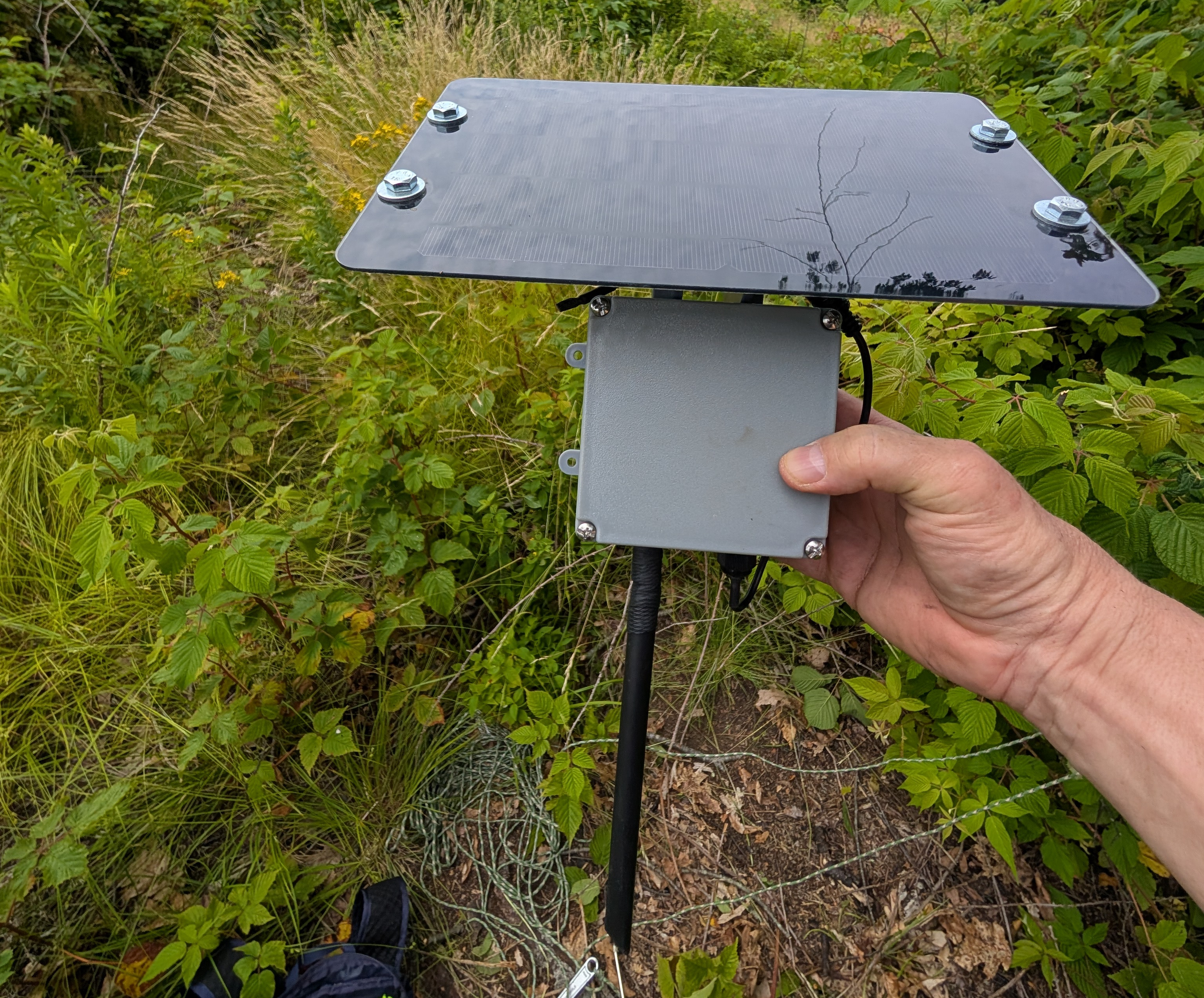

Leyden Repeater [D670]
| Owner: | pvmesh |
| Power: | Solar power, 3000mAh battery |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.6643,-72.6041 |
| 0 Hop Neighbors: | Loading... |
| Tree mounted. Provides coverage for Greenfield, MA area. Seeed Studio Xiao nRF52, CN3791 MPPT solar charger, 6W Soshine solar, 3000mAh battery. | |
n8_core_r1 [26BD]
| Owner: | nate8088 |
| Power: | Solar power, unknown battery |
| Antenna: | 3db omni |
| Last Seen: | Loading... |
| Location: | 42.3878,-72.6695 |
| 0 Hop Neighbors: | Loading... |
| Tree mounted near Horse Mountain in Williamsburg. Provides coverage for Hatfield, Hadley and parts of Williamsburg. | |
Let us know if you have installed a repeater in a advantageous location or have a cool build to share.
