Get Connected
Configuring your MeshCore Device
Companion Configuration:
Here are the settings in use in Western Massachusetts
Selected Preset
USA/Canada (Recommended)
Frequency (MHz)
910.525
Bandwidth
62.g kHz
Spreading Factor
7
Coding Rate
5
Transmit Power
22 (some radios may support higher values)

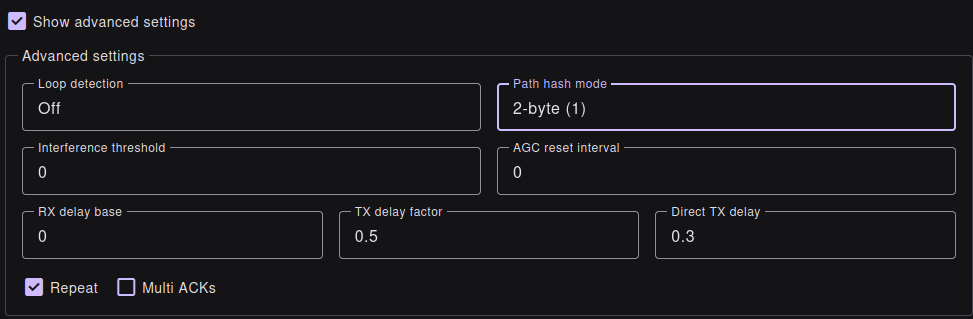

Experimental Settings
Path Hash Size = 2-byte (max 32 hops)
Channels
The following channels are popular in the area:
- Public
- #wmass
- #ct
- #weather
- #test
- #emergency
The Public channel should already be available on your node. To add the hashtag channels, from the main screen of your companion click the three dots menu, + Add Channel, # Join a Hashtag Channel - and enter the channel name.
